KUTIKAI About us

Sharp Ply, a widely recognised brand across India is known for its deep involvement in the fields of Architecture, Building Construction, Interiors, Sports Flooring's, Automotive Body Building, Industrial Patterns & Dies and Packing and Palleting. Company that has a headquarters in Bangalore, has a wide presence across various cities of India.

The brand is also known for its innovative concepts and has an excellent networking with deep inroads into a broad spectrum of industry.

Why Sharp Ply?

No doubt, the initial investment on this material is a wee bit more, but the results are amazing.

After all are we after saving the pennies?

Just select Sharp Ply and experience the joy of perfection.

Sharp ply has a variety of products that equip the construction industry for the best results. Sharp Ply has the largest variety and stocks of special plywoods in a wide range of sizes.

Call Us, we will fill you up on the details.

Make a good beginning. After all, as the saying goes, "well begun, is more than half done"

Our Speciality

Total Solutions under one roof

Sharp ply, is the one stop shop for wood based products required for construction, automotive and Industrial applications ranging from veneer lumber to out of the box finished products. Sharp Ply made entry into the Construction Industry with Plywood but the spectrum of products that it covers today is way beyond the limits of merely Plywood. At the same time, the name 'ply' retained in the caption as the word 'ply' literally indicates, unless there is an interaction of the warp and the weft, no fabric would be made.

CONSTRUCTION Sharpply Products for Construction

View Details H Beam
View Details Laminated Veener Lumber
View Details Shuttering Plywood
View Details Pine Wood Battens

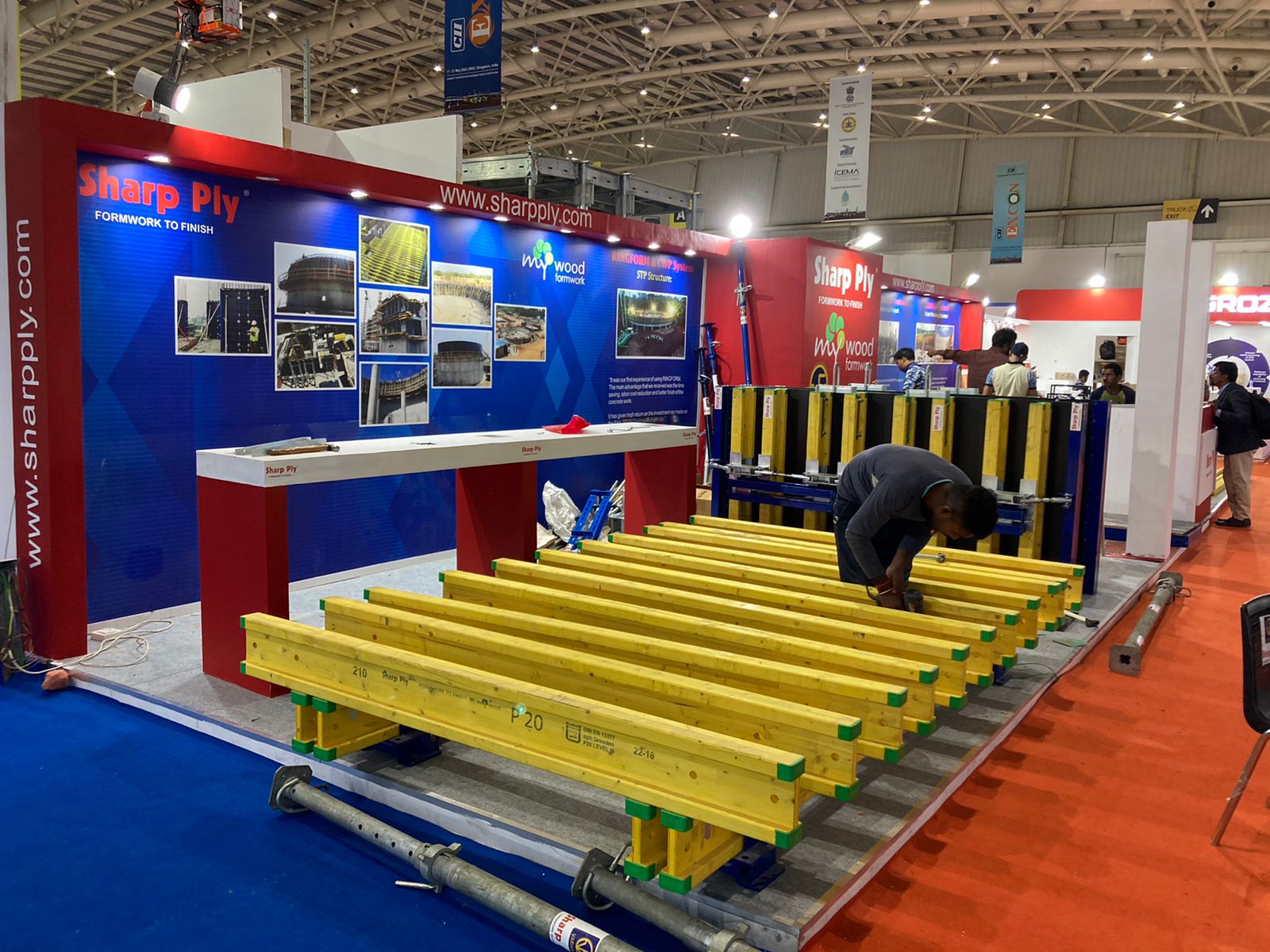

H Beam Sharply P20 Formwork Beam, Fine-ported solid and firm timber

Formwork H Beam

Fine-ported solid and firm timber

  • All material is being scanned by X-ray and assorted automatically for defects
  • For the difficult working conditions at building sites:
  • Economical, safe and effective
  • For more than 12 years P20 formwork beams ar being produced at Polomka,Slovakia

AVAILABLE IN DIFFERENT SIZES

P20 Standard

Formwork Beam produced according to European Standard EN13377 with solid 27mm 3 ply web. P20 Standard beams offer you a high level of product safety and an optimm cost effectiveness. They are easy to handle and proven in practice for efficient formwork construction.

Formwork beam produced according to European standard EN13377. The strengthened web is unique on the market and grants durability for reliable formwork construction

P20 Protect

  • Protect -cap made out of stable plastic
  • Increased service life by reduced tear-outs at beams ends.

Advantages

  • High loading bearing capacity at low weight
  • firm gluing(according to gluing certificate C)
  • highest safety level due to automatic sorting of raw material

Better safe than sorry

  • Produced and certified according to european norm EN13377
  • Parmenent monitoring by internal testing laboratory
  • External quality control by authorised and certified german institute (eph Dresden): LEVEL M
Shuttering Plywood Shuttering Plywood
Laminated Veener Lumber Laminated Veener Lumber
Pine Wood Battens Pine Wood Battens

Shuttering Plywood Sharp Ply Superior Film Faced Densifiecl Shuttering Plate (FFDSP)

Sharp Ply has a superior Film Faced Densifiecl Shuttering Plate (FFDSP) capable of a high level1 o. performance for varied uses in the construction industry like building bridges, tunnels, heavy industries power plant, defence structures and other concrete structures.

It is manufactured from selected veneers peeled from hardwood plantation and treated with specially manufactured phenolic resin for longer durability and better performance. The surface of Shuttering plywood is overlaid with 180 gsm Phenol Impregnated Film. The sides are resealed by acrylic paint to preserve moisture absorption and swelling. The entire process of manufacturing veneers, resins, film and densifiecl plates is completed in-house at a state-of-the-art plant with German collaboration. Shuttering Plywood can be supplied in sizes upto 11' x 5'

Advantages of Shuttering Plywood

Aditya FFDSP has 30% more layers of veneers resulting in superior nailing, screw holding properties and load bearing capacity. The product has 300% more retention of resin than any 151 grade shuttering and is therefore simply a better product. Using Aditya Shuttering Plywood results in substantial cost saving since it can be used up to 40 times for shuttering applications. It improves construction speed and reduces manpower requirements.

It is the ideal framework material for precast, concrete moulds since it is free from dents, non-corrosive and imparts an evenly fine finish on the concrete surface. This results in additional cost-saving since no replastering or finishing is required.

Applications of Shuttering Plywood

  • In construction industry for walls, columns, slabs, beams etc.
  • In chemical factories for packing
  • Truck body manufacturing

Technical Properties of Shuttering Ply

PROPERTIES SAL FLOOR BOARD
Density IS: 4990 : 1993 0.96 gm/cc
Tensile strength
Along the grain
Across the grain
  85 N/mm
49 N/mm
Cross Breaking Strength
Along the grain
Across the grain
IS: 4990 : 1993 102 N/mm2
67 N/mm21
Glue Shear strength IS: 1734 Part 4
Dry State
Along the grain
Across the grain
  150 N/mm
140 N/mm
Wet State
Along the grain
Across the grain
  140 N/mm
130 N/mm
MODULUS OF ELASTICITY (N/mm2) LOAD ELASTICITY
200 mm span 470 kg 10669
300 mm span 155 kg 11875
400 mm span 70 kg 12712
500 mm span 40 kg 14188
H Beam H Beam
Laminated Veener Lumber Laminated Veener Lumber
Pine Wood Battens Pine Wood Battens

Laminated Veener Lumber A homogenous dimensionally stable building material

Laminated Veneer Lumber is an engineered, layered composite of wood veneers and adhesive, and an alternative to sawn solid wood. It combines the best of modern process technology with the aesthetic beauty of natural timber. LVL improves the strength of wood by dispersing the weakness from defects (e.g. a knot) over a larger area. In effect, it increases the strength of the weakest part of a length of wood.

Advantages of Aditya LVL

Doors manufactured using Aditya LVL conform to IS: 4020-1994 standards. LVL is environment friendly since it is made from Non-Conventional Plantation Timber grown outside the forest system. Pressure impregnation with chemicals make it termite and other insect proof. LVL is solid, highly predictable and uniformly engineered wood product that is sawn to consistent sizes and is virtually free from warping and splitting. It has high bending, shear strength and strength to width ratio. It is a strong, durable and stable substitute for conventional wood for buildings, furniture and general wood works. It has properties better than wood since it has eliminated all defects like knots, sloped grains and splits found in plantation wood.

Cost Saving Applications

  • Door Frames / Chowkhats
  • Load Bearing Walls, Beams, Headers Window Frames
  • Terraces

Technical Properties of Laminated Veneer Lumber

Compressive strength
PROPERTIES REF. STANDARD VALUE
Density (gm/cc) IS: 1708(Part-2) 1986 0.80
Moisture content and Volatile content IS: 1708(Part-1) 1986 9%
Water absorption in 24 hrs. IS: 14616: 1999 1.56%
Modulus of Rupture (N/mm2) IS: 1708 (Part-6) 1986 98
Modulus of Elasticity (N/mm2) IS: 1708 (Part-6) 1986 9000
Parallel to laminate
Perpendicular to laminate
IS: 1708 (Part-8) 1986
IS: 1708 (Part-9) 1986
45
160
Horizontal Shear (N/mm2)
Parallel to laminate
Perpendicular to laminate
IS: 1708 (Part-1) 1986
IS: 1708 (Part-11) 1986
8
12
Tensile strength
Parallel to laminate (N/mm2) IS: 1708 (Part-12) 1986 60
Screw Holding Power
Edge (N) Min
Face (N) Min
IS: 1708 (Part-15) 1986 2500
3000

SIZES THICKNESS
Length up to 10ft. 35 mm, 60 mm
Width up to 21t. 155 kg
H Beam H Beam
Shuttering Plywood Shuttering Plywood
Pine Wood Battens Pine Wood Battens

Pine Wood Battens Sharply suprior quality Pine Wood Battens.

Pine Wood Battens

Pine is mainly imported from New Zealand. Pine wood is very strong wood, cheap and easy to work (less tool wear). Open grain gives better grip for adhesives and it will readily absorb preservatives, stains and paints.

Pines are evergreen trees and are a renewable resource; therefore pinewood is cheaper than other varieties of wood and also available in abundance.

New Zealand is acknowledged as one of the world's leading suppliers of high-quality pine. It also has the most advanced technology for clear-wood production. All 1.8 million hectares of New Zealand's plantations are renewable and nearly half are Forest Stewardship Council (FSC) certified. New Zealand's pine forests are highly productive and expanding. This ensures the availability and price stability for pine wood. In India, prices of pine wood are way less than other spices of wood, making it the best choice for constructors, decorators, packers and plywood industry.

AVAILABLE IN DIFFERENT SIZES

2X3, 2X4, 4X4, 4X3

H Beam H Beam
Shuttering Plywood Shuttering Plywood
Laminated Veener Lumber Laminated Veener Lumber

Automobile Sharpply Products for Automobile

View Details Compressed Checkered Flooring
View Details Compressed Truck Flooring
View Details Container Flooring
View Details Fire Retardant Plywood
View Details Compressed Alluminium
claded Checkered Flooring
View Details Scaffolding Planks

Compressed Checkered Flooring Aditya Densified Chequered floor boards for Truck, Buse, Rail Coach, Boat, Ship Flooring, Industrial and Cold storage Flooring

Compressed Checkered Flooring

These densified wooden chequered floor boards are manufactured from local plantation timbers, under strict quality control with german collaboration. The unique friction-resistant, anti-skid chequered surface is bonded with superior grade phenolic resin. This medium-density compreg plywood possesses excellent strength, durability and all weather resistance.

Aditya Densified Chequered floor boards are available in resin-impregnated, film face and metal-clad variants. A sound-absorbing floor board, which reduces noise level by 21 db, can also be provided. Each type of floor board can be supplied up to a size of 3.2 meters X 1.75 meters per sheet. The ply conforms of IS: 3513 Part-2 (Medium Density) and is used by a majority of state transport corporations in india.

Advantages of chequered floor boards

Our densified chequered floor foards are treated on both sides with thermosetting phenolic resins and micro organism resistant chemicals. This treatment protects the board from chip, cracks, warps, twists, termite, fungus, rot and abrasive action of water, sand and extreme water conditions.

Use of our large floor boards can reduce time and labour in laying bus and truck floors. It requires no pre/post treatment at the work-site thus cutting down costs considerably. Easy cutting, routing, screwing and grooving ability give Aditya densified chequered floor boards an edge over aluminium and steel floor boards. In sort, aditya densified chequered floor boards are an ideal blend of low weight, high strength and high resistance to abrasion and extreme weather.

Uses of chequered floor boards

  • Bus / truck / rail coach / boat – ship flooring
  • Factory flooring
  • Laboratories flooring
  • Flooring for cold storages

Technical properties of chequered (silver/gold)

PROPERTIES RESULTS VALUE
Density IS: 1708 (Part-2) – 1986 1.1
Moisture content and volatile content IS: 1708 (Part-1) – 1986 9%
Water absorption in 24 hrs. AS: 109.63 : Feb. 2003 3%
Cross breaking strength
Along the grain
Across the grain
IS: 1998 ( ) : 1962 1300 kg/cm2
650 kg/cm2
Tensile strength
Along the grain
Across the grain
IS: 1734 (Part-9) – 1983 900 kg/cm2
Compressive strength AS: 109: 63 Feb:2002 900 kg/cm2
Izode impact test IS: 1708 (Part-I) – 1986 Pass the test
Parallel to laminate   65 kg/cm2
Perpendicular to laminate   40 kg/cm2
Swelling in boiling water after 8 hrs. AS: 109: 63 Feb. 2002 10%

Technical Properties of Aluminium Chequered

PROPERTIES RESULTS VALUE
Density IS: 1708 (Part-2) – 1986
Moisture content and volatile content IS: 1708 (Part-1) – 1986
Water absorption in 24 hrs. AS: 109.63 : Feb. 2003 2.5%
Cross breaking strength
Along the grain
Across the grain
IS: 1998 : 1962 1500 kg/cm2
1400 kg/cm2
Tensile strength
Along the grain
Across the grain
IS: 1734 (Part-9) – 1983 900 kg/cm2
935 kg/cm2
Izode impact test IS: 1998 : 1962 Pass the test
Parallel to laminate   82 kg/cm2
Perpendicular to laminate   80 kg/cm2
Glue shear strength between Aluminium sheet and plywood (N Min)
Along the grain
Across the grain
AS: 1734 (Part-4) 1983 2400
2400
Compressed Truck Flooring Compressed Truck Flooring
Container Flooring Container Flooring
Fire Retardant Plywood Fire Retardant Plywood
Compressed Alluminium claded Checkered Flooring Compressed Alluminium claded Checkered Flooring
Scaffolding Planks Scaffolding Planks

Compressed Truck Flooring Sharp ply long life densified flooring for trucks.

Compressed Truck Flooring

Sharp ply has an extraordinary long life densified flooring to offer for your trucks. Manufactured with state-of-the-art processes, this product provides a friction-resistant anti-skid surface, bonded with superior grade adhesives making it a high density plywood endowed with excellent strength, durability and all weather resistanc

Aditya Densified Flooring is manufactured from veneers peeled from eco-friendly plantation timber and carefully seasoned to the required 6% moisture content. These Veneers are rotary cut, smooth and free from knots and splinters. Two layers of metal wire-mesh reinforcements ae added into the veneers and then impregnated with thermosetting adhesives conforming to IS: 848: 1974. Final densifications of the veneers is done under contolled condtions of high temperature and pressure.

Advantages of densified flooring

The high density and metal wire-mesh reinforcements make Aditya Densified Flooring far Superior to metal sheets and salwood currently used as truck floorings. In fact, this flooring is 40% harder than Indian Salwood. Densified flooring does not show any wear and tear on the surface even in the environment of the road transport industry. Impregnation of thermosetting adhesives and high density, make this product extremely resistant against the abrasive action of mud, water, sand and extreme weather conditions. Aditya Densified Flooring also provides cost reduction due to its long life. It is available as per size requirements thereby reducing the number of joints and time and labour in laying the floors. Due to its high strength to weight ratio, the floorboard also saves fuel and wear and tear on truck tyres.

Applications of densified flooring

  • Truck flooring
  • Container flooring
  • Trailer flooring
  • Flooring of make shift house

Technical Properties of densified flooring for truck body

PROPERTIES SAL FLOOR BOARD
Density 0.9 gm/cc 1.00gm/cc
Compressive strength IS: 1708 (Part-II) - 1986 9%
Parallel to laminate 1041 kg/cm2 1811.37 kg/cm2
Perpendicular to laminate 627.67 kg/cm2 700 kg/cm2
Static bending strength
Along the grain 1750 kg/cm2 1800 kg/cm2
Across the gain 300 kg/cm2 900 kg/cm22
Impact Strength
Edge wise Hardness 30.10 kg/cm2 35.16 kg/cm2
Hardness 750kg/cm2
Perpendicular to laminate 124kg/cm2
Hardness
(Rockwell 'H'Scale) 45 55
Water absorption in 24 hrs 15% 6%
Swelling in boiling water in 8 hrs. 19% 10%



THICKNESS SIZES
18mm for light vehicles, 25mm for medium vehicles, 35mm for heavy vehicles Only sharp ply can offer sizes up to 111X61 for exacting needs of
Compressed Checkered Flooring Compressed Checkered Flooring
Container Flooring Container Flooring
Fire Retardant Plywood Fire Retardant Plywood
Compressed Alluminium claded Checkered Flooring Compressed Alluminium claded Checkered Flooring
Scaffolding Planks Scaffolding Planks

Container Flooring Sharp ply Superior quality Container Flooring

Container Flooring

Sharp ply has an extraordinary long life densified flooring to offer for Container Flooring. Manufactured with state-of-the-art processes, this product provides a friction-resistant anti-skid surface, bonded with superior grade adhesives making it a high density plywood endowed with excellent strength, durability and all weather resistanc

Aditya Densified Container Flooring is manufactured from veneers peeled from eco-friendly plantation timber and carefully seasoned to the required 6% moisture content. These Veneers are rotary cut, smooth and free from knots and splinters. Two layers of metal wire-mesh reinforcements ae added into the veneers and then impregnated with thermosetting adhesives conforming to IS: 848: 1974. Final densifications of the veneers is done under contolled condtions of high temperature and pressure.

Advantages of densified flooring

The high density and metal wire-mesh reinforcements make Aditya Densified Flooring far Superior to metal sheets and salwood currently used as truck floorings. In fact, this flooring is 40% harder than Indian Salwood. Densified flooring does not show any wear and tear on the surface even in the environment of the road transport industry. Impregnation of thermosetting adhesives and high density, make this product extremely resistant against the abrasive action of mud, water, sand and extreme weather conditions. Aditya Densified Flooring also provides cost reduction due to its long life. It is available as per size requirements thereby reducing the number of joints and time and labour in laying the floors.

Applications of densified flooring

  • Truck flooring
  • Container flooring
  • Trailer flooring
  • Flooring of make shift house

Technical Properties of Container Flooring

PROPERTIES SAL FLOOR BOARD
Density 0.9 gm/cc 1.00gm/cc
Compressive strength IS: 1708 (Part-II) - 1986 9%
Parallel to laminate 1041 kg/cm2 1811.37 kg/cm2
Perpendicular to laminate 627.67 kg/cm2 700 kg/cm2
Static bending strength
Along the grain 1750 kg/cm2 1800 kg/cm2
Across the gain 300 kg/cm2 900 kg/cm22
Impact Strength
Edge wise Hardness 30.10 kg/cm2 35.16 kg/cm2
Hardness 750kg/cm2
Perpendicular to laminate 124kg/cm2
Hardness
(Rockwell 'H'Scale) 45 55
Water absorption in 24 hrs 15% 6%
Swelling in boiling water in 8 hrs. 19% 10%



THICKNESS SIZES
18mm for light vehicles, 25mm for medium vehicles, 35mm for heavy vehicles Only sharp ply can offer sizes up to 111X61 for exacting needs of
Compressed Checkered Flooring Compressed Checkered Flooring
Compressed Truck Flooring Compressed Truck Flooring
Fire Retardant Plywood Fire Retardant Plywood
Compressed Alluminium claded Checkered Flooring Compressed Alluminium claded Checkered Flooring
Scaffolding Planks Scaffolding Planks

Fire Retardant Plywood Aditya Densified Fire Retardant Marine Plywood a.k.a. 4-in-1 plywood

Fire Retardant Plywood

Aditya Densified Fire Retardant Marine Plywood is a unique hardwood ply which exceeds four ISI standards(IS: 710, IS:303, IS:3513, IS:5509), hence the name 4-in-1 plywood. This plywood is manufactured with veneers from hardwood plantation timber and impregnated with a special combination of highly effective fire retardant chemicals prior to bonding providing uniform fire retardant characteristics not only on the surface but to the very core of each veneer. The plywood is also treated with thermosetting resins and micro organism resistant chemicals and finally densified under high pressure and temperature. There can be simply no comparison between Aditya Densified Fire Retardant Marine Plywood and any other ordinary pressure treatment plywood.

Advantages of 4-in-1 plywood

Aditya Densified Fire Retardant Marine Plywood is a unique and exceptional plywood that provides boiling water resistance for 250 hours. It also provides resistance to ignition surface flammability and flame penetration.

The plywood is treated with thermosetting resins and micro organism resistant chemicals. This treatment protects the board from chips, cracks, warps, twists, termite, fungus, rot and abrasive action of mud, water, sand and extreme weather conditions. The chemicals impregnated are non-corrosive to aluminium and steel.

Uses of 4-in-1 Plywood

  • Making Door Frames or chowkhats (35 mm)
  • Ship / boat building
  • Flooring of tempos / Mini Trucks
  • Conatiner Flooring
  • Walls of cold storage halls
  • Alternative to metals particularly for tooling, jigs and moulds

Comparison between 4 ISI standards with 4-in-1 Fire Retardant Plywood

PROPERTIES 4-in-1 IS:3513 IS:710 IS:5509 IS:303
Density (Kg/cm3) 850 850 0.8
Glue shear strength(kg)
Dry state 150 135 9%
wet state 135 100
Mycological state 130 100
Tensile strength (kg/cm2)
Along the grain 600 567 420 1.56%
Across the grain 300 250
Static bending strength (kg/cm2)
Along the grain 650 567 98
Across the grain 500
Compressive strength 1300 1250 9000
Flamability 30 mins 30mins 45, 160
Retardation of Preservatives(kg/cm2) 16 12 15 8, 12



SIZES THICKNESS
Length up to 10ft. 35 mm, 60 mm
Width up to 21t. 155 kg
Compressed Checkered Flooring Compressed Checkered Flooring
Compressed Truck Flooring Compressed Truck Flooring
Container Flooring Container Flooring
Compressed Alluminium claded Checkered Flooring Compressed Alluminium claded Checkered Flooring
Scaffolding Planks Scaffolding Planks

Compressed Alluminium-claded Checkered Flooring Sharply aluminum composite for bus flooring for Long durability, Light weight

Compressed Alluminium Claded Checkered Flooring

Sharply aluminum composite bus flooring consists of treated hardwood and five bar 1.5mm thickness aluminum sheet pressed in 3500 tonne capacity hot press by hot & cold process. It i a composition of high densified product, unsaturated polyester and high degree polymer phenolic resin.

Application: Buses deck, heavy automobile floor, paneling, seats, back rest of seats. It can be sued for sound proofing, reduction in temperature & vibrations. Adhesive: a) BWP grade b) unsaturated polyester resin with cobalt and celerator spread at all four side of aluminium sheet up to 4H wide.

  • Thickness: 9 to 12mm
  • Sizes : 8x4 feet
  • Al. sheet thicknesses: 0.8 mm to 1.5 mm
  • Density : 0.845 to 1.00gm/cm

Technical Specifications (IS:13957:2010)

DIMENSIONS BIS REQUIREMENTS OBSERVATION VALUES
Length 2440 + 6
          - 6
2442mm
Width 1220 + 3
          - 0
1222mm
Thickness 12mm 12.10mm
Suareness 2mm/1000mm 0.55mm
Edge Straightness 2mm/1000mm 0.50mm
Workmanship & finish Clause 7 Satisfactory
Physical Properties
Moisture Content ----- 7.80%
Bond quality test Boiling - drying@60+_20c 4Hrs. a) No visible delamination glue line and plywood face & aluminium sheet Satisfactory
-20Hrs. Third Cycles b) No forcible separation and fibre should be adhered with metal sheet Satisfactory
Static bending strenght Along the grain M.O.E Avg. - 7500N/mm2 15830.24 N/mm2
Across the grain M.O.E. Ind. - 6700N.mm2 9560.72 N/mm2
Along the grain M.O.R. Avg. - 4000N/mm2 14054.40 N/mm2
Across the grain M.O.R Ind. - 3700N/mm2
Avg. - 50
Ind. - 46
Avg. - 30
Ind. - 27
8480.23 N/mm2
102.84 N/mm2
70.95 N/mm2
95.40 N/mm2
60.20 N/mm2
Tensile strength Along - 95MPa
Across - 95MPa
112 Mpa
103 Mpa
Cross breaking strength Along - 1300/Kg/cm2
Across - 1200/Kg/cm2
1400/Kg/cm2
1267/Kg/cm2
Glue Strength Along - 2200 N
Across - 2000 N
4235 N
3915 N
Impact Strength Along - 70/Kg/cm2
Across - 70/Kg/cm2
115 Kg/cm2
105 Kg/cm2
Compressed Checkered Flooring Compressed Checkered Flooring
Compressed Truck Flooring Compressed Truck Flooring
Container Flooring Container Flooring
Fire Retardant Plywood Fire Retardant Plywood
Scaffolding Planks Scaffolding Planks

Scaffolding Planks Densified"Sharply" scaffolding plank are made by selected high strength, light weight mature timber veneer.

Scaffolding Planks

Densified"Sharply" scaffolding plank are made by selected high strength, light weight mature timber veneer. These scaffolding planks are manufactured with special technology and expert supervision to ensure its proper functioning. These are used as a lumber to fabricate to platform the platform in civil work for building, bridges, highways, chemical plants, factories, hotels, malls, business centers etc.

Length : 1220, 1525, 1840, 2140, 2440, 2750, 3050, 3200mm
Width : 230, 250, 305, 380, 460 mm
Thickness : 30, 35, 38, 380, 40 mm
Density : 0.65 To 0.75 gm/cm3

Compressed Checkered Flooring Compressed Checkered Flooring
Compressed Truck Flooring Compressed Truck Flooring
Container Flooring Container Flooring
Fire Retardant Plywood Fire Retardant Plywood
Compressed Alluminium claded Checkered Flooring Compressed Alluminium claded Checkered Flooring

Industrial Applications Sharpply Products for Industrail Applications

View Details Plywood Battens and Dies

Plywood Battens and Dies Aditya Ply for patterns and Dies is a hardened wear-resistant multi-laminated material in sheet form

Plywood Battens and Dies

Aditya Ply for patterns and Dies is a hardened wear-resistant multi-laminated material in sheet form, it can be used as an alternative to metals particularly for tooling, die-making, jig and mould-making. It is a combination of plastic resins and hardwood manufactured under specific pressure and heat. Owing to its practically non-porous texture, low vibration dampening and high density, it provides a hardness and high mechanical strength comparable to many metals. The use of selected hardwood veneers gives durability, uniformity and replaces expensive metal patterns or synthetic resin patterns.

Advantages of Ply for patterns & Dies

  • The main advantage of pattern Die Plywood is its ease in workability and machinability.
  • Its provides extremely high abrasion resistance, durability, hardness and uniformity.
  • It permits extraordinary high number of moulds without requiring repairs, owing to these advantages it is a cost effective replacement for metal patterns, jigs and dies.

Applications of Ply for Patterns & Dies

  • The use of pattern Die Plywood has been proven under the toughest conditions worldwide.
  • It is specified for high pressure, vacuum, automotive and jolt squeeze moulding machines manufacturing furniture handles, dies for stamp forging, sheet metal and anti magnetic parts.

Storage of Ply for patterns & Dies

  • Aditya Ply for Patterns & Dies Should be stored in a dry room.
  • It is recommended to cover the topmost panel of the stack.

Available in Thickness : 2.5mm, 40mm, 100mm, 125mm


Technical Properties of Ply for patterns & Dies

PROPERTIES REF. STANDARD VALUE
Density IS: 1708 (Part-I) - 1986 0.9.1 gm/cc
Moisture content IS: 1708 (Part-II) - 1986 9%
Water absorption in 24 hrs. AS: 109 Feb. 2002 3% max
Tensile strength IS: 1734 (Part-6) 1983 600 kg/cm2
Static bending strength
Along the grain
Across the gain
IS: 1998 : 1962 1300 kg/cm2
700kg/cm2
Compressive strength IS: 1708 (Part 8-9)1986
Parallel to laminate   750kg/cm2
Perpendicular to laminate   124kg/cm2
Hardness IS: 1586 : 1988
(Rockwell 'H'Scale)   60
Impact Strength IS: 1998 : 1962
Parallel to laminate   60kg/cm2
Perpendicular to laminate   30kg/cm2

Interior Sharpply Products for Interiors

View Details Commercial Plywood
View Details Block Boards
View Details Moisture and Boiling Water Proof Plywood
View Details Pre laminated Plywood
View Details All kinds of Plywood for Interior Purpose

Commercial Plywood Sharply specially treated plywood designed to resist rotting in a high moisture environment

Commercial Plywood

Sharply is specially treated plywood that is designed to resist rotting in a high moisture environment. It is manufactured with utmost care in the supervision of technical experts with well selected pieces of core and face veneers. Further, the finished plywood is subjected to proper chemical treatment with water-soluble fixed type preservatives under vacuum pressure to ensure protection against wood destroying organism and to make the product insects, borer, termites and fungi free.

Applications :

Extensively used in making of furniture, partitions, racks/shelves, shutter, under layer for decorative laminates etc.

Commercial Plywood Size(in feet) : 6x3, 7x3, 8x3, 6x4, 7x4, 8x4, 7x5, 8x5.

Thickness : 4, 6, 8, 12, 15, 18, 25mm.

Block Boards Block Boards
Moisture and Boiling Water Proof Plywood Moisture and Boiling Water Proof Plywood
Pre laminated Plywood Pre laminated Plywood
All kinds of Plywood for Interior Purpose All kinds of Plywood for Interior Purpose

Block Boards Sharply block boards are made in moisture resistant & boiling water resistant grade.

Block Boards

Sharply block boards are made in moisture resistant & boiling water resistant grade. The wooden battens are seasoned in scientifically run seasoning kiln plants and then get plain with four sider precision plainer to obtain the uniform thickness of battens.These battens are systematically arranged and care is taken to avoid any gap between the battens. Regular test are conducted to maintain the quality of block boards as per relevant standards.

Applications :

Furniture and partition, panels, beaded doors, interiors of portable houses, bins and tracks.

Size (in feet) : 6x3, 7x3, 8x3, 6x4, 7x4, 8x4, 7x5, 8x5

Thicknesses : 19mm

Commercial Plywood Commercial Plywood
Moisture and Boiling Water Proof Plywood Moisture and Boiling Water Proof Plywood
Pre laminated Plywood Pre laminated Plywood
All kinds of Plywood for Interior Purpose All kinds of Plywood for Interior Purpose

Moisture and Boiling Water Proof Plywood Aditya Moisture and Boiling Water Proof Plywood.

Moisture and Boiling Water Proof Plywood

Sharp Ply offers a Moisture Resistant (MR) and Boiling Water Rsistant (BWR) plywood for use in high quality furniture, partitions, paneling, doors and window panels, bathrooms and kitchen panels – Aditya MR/ BWR Ply conferming to IS : 303 standards.

Aditya MR / BWR is manufactured from veneers of tropical hardwood plantation timber and treated with phenolic resins developed in-house for longer durability and better performance. The plywood is chemically treated at each glueline and is ideal for use in termite and moisture prone areas. To protect against duplication, a special strip of beech has been implanted into the face veneer.

Aditya BWR plywood has been approved by ASTRU (All India State Road Transport Undertakeing) and is currently used by majority of the large bus body manufactures.

Advantages of Aditya MR / BWR Ply

Unlike other MR / BWR plywood available in the market, Aditya Ply is Made from a single species of plantation hardwood timber. The Plywood can withstand severe clitic and weather conditions and is durable even when used in hostile areas. Special hemical additives prevent de-lamination and protect the plywood from micro organisms.

Applications of Aditya MR / BWR Ply

  • Furniture
  • Partitions
  • Kitchen
  • Cabinates
  • Bus Body Shuttering

Technical Properties of Aditya BWR Grade Plywood

PROPERTIES REF. STANDARD VALUE
Density IS: 1734 (Part-1) 1983 0.65 gm/cc
Glu Shear Strength (Dry state)
Dry state IS: 1734 (Part-4) 1983 180 kg.
After 8hrs. boiling IS: 1734 (Part-6) 1983 135 kg.
Impact Strength
Mycological IS: 1734 (Part- 7) 1983 130 kg.

Technical Properties of Aditya MR Grade Plywood

PROPERTIES REF. STANDARD VALUE
Density IS: 1734 (Part-1) 1983 0.65 gm/cc
Glu Shear Strength (Dry state)
Dry state IS: 1734 (Part-4) 1983 180 kg.
After 8hrs. boiling IS: 1734 (Part-6) 1983 135 kg.
Impact Strength
Mycological IS: 1734 (Part- 7) 1983 130 kg.
Screw Holding Strength   Above 250 kg/cm2 normal to face
Sum of Tensile Strength   Above 620 kg/cm2

Sizes

SIZES   THICKNESS
2.44 X 1.22 mtrs 2.44 X 0.92 mtrs 4mm, 6 mm
2.44 X 1.22 mtrs. 2.44 X 0.92 mtrs 9mm, 12 mm
1.84 X 1.22 mtrs 1.84 X 0.92 mtrs. 16mm, 9 mm,
25mm, 43 mm



Commercial Plywood Commercial Plywood
Block Boards Block Boards
Pre laminated Plywood Pre laminated Plywood
All kinds of Plywood for Interior Purpose All kinds of Plywood for Interior Purpose

Pre laminated Plywood Fabricated from excellent base materials and advanced technology, superior finish Pre-Laminated Boards are durable and offer high resistance to corrosion and abrasion

Pre laminated Plywood

We are enlisted at the apex among the most preferred Pre Laminated Boards Manufacturers. Fabricated from excellent base materials and advanced technology, our superior finish Pre-Laminated Boards are durable and offer high resistance to corrosion and abrasion. We cater to the requirements of our customers with utmost efficiency, promptness and reliability by offering them products as per their specifications and desires.

Attributes

  • Water proof boards
  • Require minimum maintenance
  • Susceptible to high pressure
  • High resistance to worst temperature conditions

Available In

  • Multitude of colors
  • Smooth textures
  • Varied patterns and sizes
  • Appropriate thickness
Commercial Plywood Commercial Plywood
Block Boards Block Boards
Moisture and Boiling Water Proof Plywood Moisture and Boiling Water Proof Plywood
All kinds of Plywood for Interior Purpose All kinds of Plywood for Interior Purpose

All kinds of Plywood for Interior Purpose Sharply next gen plywood is widely used for the woodworking, furniture making, homes, offices, business centers, hotels etc.

All kinds of Plywood for Interior Purpose

Sharply is available in boiling water resistant(BWR) grades. This grade is used for the interior and exterior woodworking application. BWR grade plywood is manufactured with phenol-formaldehyde resin.

Application : Sharply next gen plywood is widely used for the woodworking, furniture making, homes, offices, business centers, hotels etc. Sizes (In feet) : 6x3, 6x4, 7x3, 7x4, 8x4

Thicknesses : 6, 12, 18mm

Commercial Plywood Commercial Plywood
Block Boards Block Boards
Moisture and Boiling Water Proof Plywood Moisture and Boiling Water Proof Plywood
Pre laminated Plywood Pre laminated Plywood

Packing Sharpply Packing wood Products

View Details Packing Plywood
View Details Pine Wood Battens

Packing Plywood Plywood Packing Boxes are water proof, fungus resistant and ensure safe storage of your products.

Plywood Packing Boxes are water proof, fungus resistant and ensure safe storage of your products. Plywood packaging boxes, offered, are widely used for shipping and storage purposes.

Pine Wood Battens Pine Wood Battens

Pine Wood Battens Sharply suprior quality Pine Wood Battens.

Pine Wood Battens

Pine is mainly imported from New Zealand. Pine wood is very strong wood, cheap and easy to work (less tool wear). Open grain gives better grip for adhesives and it will readily absorb preservatives, stains and paints.

Pines are evergreen trees and are a renewable resource; therefore pinewood is cheaper than other varieties of wood and also available in abundance.

New Zealand is acknowledged as one of the world's leading suppliers of high-quality pine. It also has the most advanced technology for clear-wood production. All 1.8 million hectares of New Zealand's plantations are renewable and nearly half are Forest Stewardship Council (FSC) certified. New Zealand's pine forests are highly productive and expanding. This ensures the availability and price stability for pine wood. In India, prices of pine wood are way less than other spices of wood, making it the best choice for constructors, decorators, packers and plywood industry.

AVAILABLE IN DIFFERENT SIZES

2X3, 2X4, 4X4, 4X3

Packing Plywood Packing Plywood

Doors Aditya Doors Series

View Details Aditya Veneer Door Series
View Details Moulded Panel Door Series
View Details Decorative PVC Door Series
View Details Veneer Moulded Panel Door Series
View Details Pre Stained Doors
View Details Flush Doors
View Details Fire Retardent Doors
View Details Core Content
View Details Pre-hung Doors

Aditya Veneer Door Series A Choice of Royal Person

Aditya Veneer Door Series

Sharp Ply provides a classic visual delight of natural wood with a remarkable range of Aditya Veneer Door Series. This is not part of the Masonite series. We have specially designed and imported this Veneer skin keeping in mind the climate conditions and requirements of the Indian market.

These doors are made from high quality fiber board panel which resists shrinking, swelling, cracking and joint separation.

Our Aditya Veneer Door Series serves as the best alternative to solid timber panel doors. They are not only durable and long lasting but also borer and warp free. The veneer doors demands very low maintenance. These doors do not require Sanding, Lapi or Putti.

Aditya Veneer Door Series are custom made for quick installation. These doors are available in various thickness ad sizes for bulk purchase.

This genius series is available in in very attractive ranges with modern and stylish designs to make your interiors more special

Metal Range

Sizes: 7'x 3', 7'x 3.25', 8'x 4'

Natural Range

Sizes: 7'x 3.25'

Eco Range

Sizes: 7'x 3', 7'x 3.25'

Paper cut Range

Sizes: 7'x 3', 7'x 3.25'

Emboss Range

Sizes: 7'x 3.25'

Traditional Foil Range

Sizes: 7'x 3.25'

Digital Range

Sizes: 7'x 3', 7'x 3.25'

Plain Laminates Range

Sizes: 7'x 3', 7'x 3.25', 8'x 4'

Moulded Panel Door Series Moulded Panel Door Series
Decorative PVC Door Series Decorative PVC Door Series
Veneer Moulded Panel Door Series Veneer Moulded Panel Door Series
Pre Stained Doors Pre Stained Doors
Flush Doors Flush Doors
Fire Retardent Doors Fire Retardent Doors
Core Content Core Content
Pre-hung Doors Pre-hung Doors

Aditya Pre-hung Doors Ready to fit

Pre-hung Doors

Moulded Panel Door Series Moulded Panel Door Series
Decorative PVC Door Series Decorative PVC Door Series
Veneer Moulded Panel Door Series Veneer Moulded Panel Door Series
Pre Stained Doors Pre Stained Doors
Flush Doors Flush Doors
Fire Retardent Doors Fire Retardent Doors
Core Content Core Content

Moulded Panel Door Series Aditya series of sturdy, long lasting and stylish doors to make your home charming and beautiful.

Moulded Panel Door Series

Aditya offers a series of sturdy, long lasting and stylish doors to make your home charming and beautiful. We manufacture a range of top quality Moulded Panel Doors.

Aditya Moulded Panel Doors are available in the wide range of widths, heights and thickness. They are pre-primed for easy and smooth finishing. Plus, our doors are bonded using Phenol Formaldehyde Synthetic Resin conforming to BWP grade of IS:848.

These beautiful doors are available in smooth and textured surfaces with matching bifolds to suit any décor. They are meant for interior use only.

Core Material Options: Honey comb core, Ecolax core, Tubler core and Timber core.

Details of length & widths

widths available(inches)
  24 26 28 30 32 34 36 37 40 42
2 Panel Arch Top Textured
2 Panel Horizon Textured
3 Panel Textured
4 Panel Arch Top Textured
4 Panel Square Textured
6 Panel Textured
Elegance Crown Textured

Thickness of door(mm): 30, 32, 35, 40 and 45.
Available lengths(inches):78, 80, 82 and 84.
The above designs and sizes are subject to availability.
The above doors are available in pre-primered finish.
On a special request Elegance Crown Door can be made upto 48" in width.

Comparisons between Aditya and Other moulded panel door

SR.NO DESCRIPTION Aditya DOORS OTHER DOORS
1 Make Made as per IS standards Non - standard
2 Machines Imported from Europe & other countries Local
3 Door Skin HDF (made from tropical hardwood) MDF or LDF (made from soft wood or baggase)
4 Bonded with BWP grade Phenaol Formaldehyde synthetic Resin (PF) MR or UF
5 Timber Used Imported Virgin Local
6 Timber Used Chemically Treated (border free) Non - Treated (chance of border)
7 Infill Core Ecolax core for smooth finish Timber which may gives waviness on surface
8 PVC Imported and Thickness .35mm Local or Chinesse Thickness 0.2mm
9 PVC with UV Protector gives long lasting Shade and prevents fading without UV Protector
10 PVC Resin Imported Local or Chinesse
Aditya Veneer Door Series Aditya Veneer Door Series
Decorative PVC Door Series Decorative PVC Door Series
Veneer Moulded Panel Door Series Veneer Moulded Panel Door Series
Pre Stained Doors Pre Stained Doors
Flush Doors Flush Doors
Fire Retardent Doors Fire Retardent Doors
Core Content Core Content
Pre-hung Doors Pre-hung Doors

Decorative PVC Door Series Sharp Ply Moulded Panel Doors with decorative PVC sheets

Decorative PVC Door Series

Sharp Ply Moulded Panel Doors with decorative PVC sheets are made up of the finest quality imported rigid PVC sheets, wood and fiber boards. These doors are aesthetically beautiful and more durable.

European standard raw material and hi-tech German equipment and technology facilitate us to deliver these highly elegant PVC finished doors. Apart from being Economical, their striking looks offer a grand charm to homes and interiors.

Also you have an additional benefit of zero maintenance as our doors require no polishing, painting or varnishing thus saving you additional expenses.

After applying P.U. resin on both sides of the board, PVC sheets are presses under temperature of 110C using membrane press. Theses PVC sheet doors are available in solid colors, wood grain and metallic effect in smooth, textured and glossy finish. We offer variety of shades to match your taste.

These doors can be laminated with PVC sheet on single or both sides. In addition, the doors can be easily fitted with hardware anywhere in to the frames as per your requirement.

Aditya Veneer Door Series Aditya Veneer Door Series
Moulded Panel Door Series Moulded Panel Door Series
Veneer Moulded Panel Door Series Veneer Moulded Panel Door Series
Pre Stained Doors Pre Stained Doors
Flush Doors Flush Doors
Fire Retardent Doors Fire Retardent Doors
Core Content Core Content
Pre-hung Doors Pre-hung Doors

Veneer Moulded Panel Door Series Classic visual delight of natural wood with a remarkable range of Veneer Moulded Panel Doors.

Veneer Moulded Panel Door Series

Sharp Ply provides a classic visual delight of natural wood with a remarkable range of Veneer Moulded Panel Doors. This is not part of the Masonite series. We have specially designed and imported this Veneer skin keeping in mind the climate conditions and requirements of the Indian market.

These doors are made from high quality fiber board panel which resists shrinking, swelling, cracking and joint separation.

Our Veneer Series serves as the best alternative to solid timber panel doors. They are not only durable and long lasting but also borer and warp free. The veneer doors demands very low maintenance. These doors do not require Sanding, Lapi or Putti.

Aditya Veneer Moulded Panel Doors are custom made for quick installation. These doors are available in various thickness ad sizes for bulk purchase.

This genius series is available in classic woods – Walnut, Teak, Sapele and Wenge.

Core options: Honey comb core, Ecolax core, Tubler core and Timber core.

SIZES AVAILABLE
Height (inches) 78, 80, 82, 84
Width (inches) 32, 36, 38, 39
THickness (inches) 32, 35, 40, 45
Aditya Veneer Door Series Aditya Veneer Door Series
Moulded Panel Door Series Moulded Panel Door Series
Decorative PVC Door Series Decorative PVC Door Series
Pre Stained Doors Pre Stained Doors
Flush Doors Flush Doors
Fire Retardent Doors Fire Retardent Doors
Core Content Core Content
Pre-hung Doors Pre-hung Doors

Pre Stained Doors Sharp Ply offers a series of sturdy, long lasting and stylish doors to make your home charming and beautiful.

Pre Stained Doors

Sharp Ply offers a series of sturdy, long lasting and stylish doors to make your home charming and beautiful. We manufacture a range of top quality Pre – Stained Panel Doors.

Aditya Pre- Stained Panel Doors are available in a wide range if the widths, heights and thickness. They are bonded using Phenol Formaldehyde Synthetic Resin confirming to BWP grade of IS: 848. Moreover these doors are Pre- Stained and hence require no pain, no polish etc. they are ready to Fix Doors.

These beautiful doors are available in different shades & designs to suit any décor. They are meant for interior use only.

Core options: Honey comb core, Ecolax core, Tubler core and Timber core.

SIZES AVAILABLE
Height (inches) 78, 81, 84
Width (inches) 27, 32, 36, 37
THickness (inches) 32, 35, 40, 45
Aditya Veneer Door Series Aditya Veneer Door Series
Moulded Panel Door Series Moulded Panel Door Series
Decorative PVC Door Series Decorative PVC Door Series
Veneer Moulded Panel Door Series Veneer Moulded Panel Door Series
Flush Doors Flush Doors
Fire Retardent Doors Fire Retardent Doors
Core Content Core Content
Pre-hung Doors Pre-hung Doors

Flush Doors Aditya flush doors as per Indian standards.

Flush Doors

For many years, Flush Doors' style and elegance have been making then an obvious choice for countless homes. While giving an exceptionally long service to your home they accurate the beauty of your home.

Aditya manufactures flush doors as per Indian standards. A solid core wooden flush door consists of a block board core bonded with crossband and veneer faces constructed on both the sides. As per IS: 10013 and IS: 401, timber is chemically treated and vacuum pressured. This process strengthens the timber by making is not only durable but also borer, termite and fungi free. Wood is generally seasoned at the automatic skin seasoning plant as per IS: 1144, substantially reducing moisture as per standard requirement mentioned in the IS: 287. It is further bonded with phenol formaldehyde synthetic resin, 100% boiling water resistance as per IS: 848 and hot pressed at high temperature under uniform pressure. Decorative veneer or laminated sheet is pressed by melamine or PVAc resin.

Our flush doors are available in

  • Aditya Gold: 5 Ply series Aditya
  • Classic: 7 Ply series Aditya
  • Classic: 9 Ply series

Wardrobe Doors

Every flush door is processed during our advanced machinery to keep the structure perfect and dimensions accurate and stable. To eliminate telegraphy impressions, we pass the board through a belt sander machine which imparts super smooth finishing. Final finishing is done with commercial, natural/recomposed or decorative veneer. This door can be laminated or pained or polished on both sides.

Core material options: Honey comb core, Ecolax core, Tubler core and Timber core.

Aditya Veneer Door Series Aditya Veneer Door Series
Moulded Panel Door Series Moulded Panel Door Series
Decorative PVC Door Series Decorative PVC Door Series
Veneer Moulded Panel Door Series Veneer Moulded Panel Door Series
Pre Stained Doors Pre Stained Doors
Fire Retardent Doors Fire Retardent Doors
Core Content Core Content
Pre-hung Doors Pre-hung Doors

Fire Retardent Doors Aditya High performance Fire Retardent Doors

Fire Retardent Doors

Aditya fire retardant doors are manufactures with the help of modern machinery and advanced treatment technology.

During the process of manufacturing FR door, the wooden block board core/ fire core board along with cross band and veneer are subject to special chemical treatment as per relevant IS specifications in a vacuum pressure impregnation plant.

This chemical treatment imparts the board maximum capacity to resist fire and also provide protection against attack from fungus, border and termites. Further, the process of klin seasonings reduces moisture to a considerable level.

We offer FR doors in the following three types:)

30-minute fire retardant doors:

The glued crossband/HDF/ veneer and face veneer of combined thickness of 5/6 mm are applied on both sides of the block board/ fire core board type frame, the same is hot pressed under temperature of ( 140/150C and pressure of 14-16kg/cm2

60/120- minute fire retardant doors:

Adequate thickness of sesin impregnated mineral heat insulator is layered on both surfaces. The glued crossband/HDF/veneer of combined thickness of 5/6 mm are applied on both side of the block / fire core board type frame. The same is hot pressed under temperature of 140/1500C and pressure of 14-16 kg/cm2.

The doors are cut using double dimension technique at all the edges. They are smooth finished on the surface with belt sanding machines and then treated with fire retardant chemicals. The finished doors are finally doors are finally tested at the laboratory generally conforming to IS 5509:1980 Specifications and are ready for dispatch.

Note: we supply fire retardant doors only. Our shutters should be installed with properly selected intumescent strips, fire retardant frame of specified rating and fire retardant hardware approved by CBRI, Roorkee, installation should be as per guidelines specified by hardware manufacturer. Only then the assembly will confirm to BS 476 part 8/22 and IS 3614 part 2 and IS 3809.

Aditya Veneer Door Series Aditya Veneer Door Series
Moulded Panel Door Series Moulded Panel Door Series
Decorative PVC Door Series Decorative PVC Door Series
Veneer Moulded Panel Door Series Veneer Moulded Panel Door Series
Pre Stained Doors Pre Stained Doors
Flush Doors Flush Doors
Core Content Core Content
Pre-hung Doors Pre-hung Doors

Core Content Aditya is the first company to launch this European concept of light weight and eco-friendly honeycomb core in India

Core Content

Honeycomb

Now exceptional quality becomes economical

The honeycomb construction – originally developed for the air craft and space technology, provides optimal cover, high lad bearing capacity and rigidity to a structure. Since many years, honeycomb has been serving as very popular core material for doors worldwide.

Aditya is the first company to launch this European concept of light weight and eco-friendly honeycomb core in India, thus living a new dimension to Indian door making industry. The honeycomb core is imported from Honicel if Netherlands- a world leader specializing in supreme quality honeycomb cores.

Honeycomb core is made from chemically treated recycled paper. The basic strength of honeycomb comes from its hexagonal shape. Its high compressive and tensile strength undoubtedly makes it a unique, universal and reliable replacement for solid filling materials in the door making industry. These doors can withstand pressure of up to 8kg/sqcm.

Traditional doors are very heavy by weight and after some period start some leaning and jamming. Hence it requires considerable maintenance. Whereas, being light weight, ingenious honeycomb core has an edge over all problems due to deformability.

Honeycomb core has proven to be very durable all over the world and stands unaffected from moisture in all kinds of climates and extreme weather conditions. Being lightweight, these doors require minimum hinges and thinner door frames. This makes it economical in terms f hardware and fixing costs.

Aditya is very happy to offer you the benefits of this versatile material from Honicel. We are committed towards fulfilling our environmental responsibilities by promoting eco- friendly products which enriches the customer experience and abstains from causing damage to the nature.

The Difference Between Traditional and Honeycomb Doors

TRADITIONAL DOORS HONEYCOMB DOORS
Consumes more wood Complete Eco friendly
Heavy weight Light weight
Traditional approach Hi-Tech Approach
Heavy Maintenance Low maintenance
Expensive Economical
Uneven/ Irregular surface in extreme climate conditions Flat surface/Durable in extreme climate conditions

Ecolax Board

Properties of Ecolax Board

PROPERTIES UNIT ECOLAX TEST BY EN STD
Density of Board Kg/m3 400-450 EN-323
Moisture Content % 8-12 EN-322
Bending Strength N/mm2(min) 9 EN-310
Internal bond Tensile strength N/mm2(min) 0.35 EN-319
Surface soundness N/mm2(min) 0.65 EN-311
Formaldehyde class   E-1 EN-120

Ecolax is popularly used as a core material of filled doors worldwide. Its introduction in India is not less than a revolution in the Indian door making industry. It is manufactured by a special methos of extrusion with the help of untreated of untreated saw mill residues and jute sticks on an eco- friendly basis.

It is a unique board from Europe with the correct thickness and density of 400-450 Kg/m3 meeting E1 standards. Though it is lighter than wood, its outstanding properties make it an excellent substitute for timber doors. Its capacity of providing almost all the benefits of wooden doors is exceptional. These doors have great acoustic properties as Ecolax is an absorbent board dampening all sound. Their extra smooth uniform core offers relief from telegraphy impressions.

These doors have been tested for Indian standards at our factory for over two years covering all climatic seasons- twice. It has enhanced bonding strength with PF/MUF resin. Ecolax board filled Aditya super flat doors are available in flush doors, veneer doors, decorative laminated doors and decorative moulded panel doors.

Screw Fixing: Use fully threaded parallel shank screws with overall diameter to core. Do not use wood screws.

Tubler Board

S

harpPly has also launched the Tubler core filled doors having unique features like never before in Indian door industry. We import tubler core from sauerland spanplatte (1951), Germany.

The structure of tubler board is based on the age-old engineering principle of bridge arcs. Like a bridge construction, tubler core provides an ideal combination of light weight and powerful resistance. Compared to solid doors the weight of tubler core is reduced by upto 60%. This impressive fact proves that high quality doors do not have to be heavy.

Tubler and solid cores have a very low thickness sweeling, which is unusal for wood based materials. This makes them particularly suitable for doors with delicate surfaces. The special positioning of the particles guarantees a very high impact resistance. Doors with tubler core stand the greatest impact inpite of large diameter of the tube. Plus, it is termite and borer resitance.

Timber Core

Timber core is a traditional core extracted from natural resources. Timber core is very popular and common filler used for many years. Mango, Pine, Meranti etc. are commonly used species of timber. Strong and rigid timber core is also known as solid core or block board.

Timber is chemically treated as per IS: 10013 by a chemical known as CCA (Copper Chrome Arsenic) and vacuum pressured as per IS: 401. CCA is a water soluble wood preservative which is applied by proper vacuum pressure scheduled by Full Cell Method or Fast Fluctuating Process of treatment.

As per international practices, timber members in services are classified in to different hazard levels depending upon circumstances of use. In India, the nodal standard for wood preservation is IS 401 i.e. recommended practice for preservation of Timber.

According to IS 401, we build timber doors of frames of Group 5 category. Group 5 includes building timber in interior use which is not in contact with ground or soil and used in dry conditions. The preservatives with individual salt retentions recommended for Group 5 is CCA 4 kgs/m3

The treatment strengthens the wood for durability. Chemically treated wood is generally seasoned at he automatic klin seasoning plant as per IS: 1141 reducing the moisture as per the standard requirement mentioned in the IS: 287.

Modern technology of 'finger joint system' for stile and rails not only makes the door stronger but also reduces the chances of warping to

greater extent.

Aditya Veneer Door Series Aditya Veneer Door Series
Moulded Panel Door Series Moulded Panel Door Series
Decorative PVC Door Series Decorative PVC Door Series
Veneer Moulded Panel Door Series Veneer Moulded Panel Door Series
Pre Stained Doors Pre Stained Doors
Flush Doors Flush Doors
Fire Retardent Doors Fire Retardent Doors
Pre-hung Doors Pre-hung Doors

Pallet Sharpply Products for Concrete Block Production.

View Details Production Pallet

Production Pallet Sharply Production Pallet UPPLUS for Concrete Block Production

Production Pallet

SharpPly UPplus© production Pallets are always used, where reliable production of perfect concrete products is inalienable.

SharpPly UPplus© production Pallets was esspecially designed for the extreme demands of the concrete block industry. The individual plancks for example are kiln dried and moulded with a dovetail joint. The tight fitting and firm conection and lamination of the planks guarantees a flat and homogenuos surface. This in turn ensures the high quality of your concrete products, enhances longevity of the board and reduces cost. The C-Profil edge protection prevents mechanical damage at the edges of the board.

WOOD SPICES

  • Wood species: Pine, Spruce, Larch

SIZES

  • Thickness: 40mm- 60mm
  • Length: 1080mm-1500mm
  • Width: 490 mm-1350mm

PROFILE

  • Planks connected with double dovetail joints
  • Additional gluing with waterproof PU Glue(wood glue)

EDGES

  • C-profile edge protection made of galvanized steel secured with countersunk rivets and two force-fit impressions to avoid mechanical damages
  • Longitudinal edges slightll beveled

SURGACE

  • Production pallet sanded on both sides with 100% flat surfaces
  • Knotholes/defects professional plugged with laminated natural wood dovels/repair strips
  • Treated all sides with special impregnation oil

Advantages

  • Double locking: Thanks to double dovetail joints and gluing with waterproof PU Glue(wood glue)
  • Especially developed to fulfil the extreme requirements of the concrete industry
  • Specific adaption of the moisture content of each individual order according to the customer's requirements
  • Very good transmission of vibrations and steady vibration behavior(continuous dovetail joints)
  • Especially well-suited for concrete block machines with rinsing equipment because dripping of water through the planks connection is impossible
  • Only selected and high quality softwood from top growing regions is used
  • Permenent quality assurance executed by our skilled workers at all stages of production
  • "used" boards are easily recyclable(Possible resaleable)
  • Containerloading according to Phytosanitary Standards ISPM 15/2005
  • International service by our export team

Contact:

KUTIKAI

SHARP PLY (INDIA) PRIVATE LIMITED


info@sharpply.com

Phone: +91 80 26600 117
Fax: +91 80 2660 0118



Corporate Office

SHARP PLY (INDIA) PRIVATE LIMITED.
'Suhani Villa' #33
Middle School Road,
V.V Puram
Banglore - 560004

Phone: +91 80 26600 117
Fax: +91 80 2660 0118
Mail: info@sharpply.com

Warehouse

SHARP PLY (INDIA) PRIVATE LIMITED.
114/14, Industrial Estate, First Main Road
Deepanjali Nagar
Mysore Road
Banglore - 560 026

Phone: +91 80 2675 6884 / 91 80 2675 5225
Fax: +91 80 26755225
Email: info@sharpply.com

Branches

Hyderabad

SHARP PLY (INDIA) PRIVATE LIMITED.
No.73, Paigah Colony, 2ndFloor,
S.P. Road, Near Anand Theatre
Begumpet.
Hyderabad - 500 003

Contact Person: Mr.Shaleen
Phone: +91 40 27905600
Email: info@sharpply.com

Chennai

SHARP PLY (INDIA) PRIVATE LIMITED.
Old No. 109 First Floor
Choolai High Road,
Choolai
Chennai - 600 112

Contact Person: Mr.Manish
Phone: +91 44 42825507
Fax: +91 44 42825547
Email: info@sharpply.com

Delhi

SHARP PLY (INDIA) PRIVATE LIMITED.
No. B-198/7,
Mansarover Garden,
Delhi - 110015


Email: dakshesh@sharpply.com
        info@sharpply.com
        delhi@sharpply.com

Surat

SHARP PLY (INDIA) PRIVATE LIMITED.
Stock point: 74, Ravi Tej Ind. Society,
CNG Pump ni gali, Bhatar Char Rasta,
Surat – 395017

Contact Person: Himmat Singhi
Phone: +91 99132 53000

Email: himmat@sharpply.com
         info@sharpply.com

Raipur

SHARP PLY (INDIA) PRIVATE LIMITED.
#207, Harshith Corporate
Mama Naaka Chowk
Raipur (C.G.) 492099

Phone: +91 91116 53000
Email: info@sharpply.com

Ph: +91 80 26600 117
Mail: info@sharpply.com
